Stainless Steel Mesh Sieve from China manufacturer - Henan Pingyuan Mining Machinery Co,. Ltd

Price:	900.0~9980.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XZS

Production Capacity: 50 Set/Sets per Month

Delivery Date: 15-30 working days after we...

Voltage:220V,380V,415V or other: Diameter: 500-1970mm

Means of Transport: Ocean,Land,Air

Packing: Standard packing As request

Brand Name: PK

1.reliably sealing
2.SUS 304 material
3.self-cleaning bouncing ball
4.long life time

-------Brief Introduction

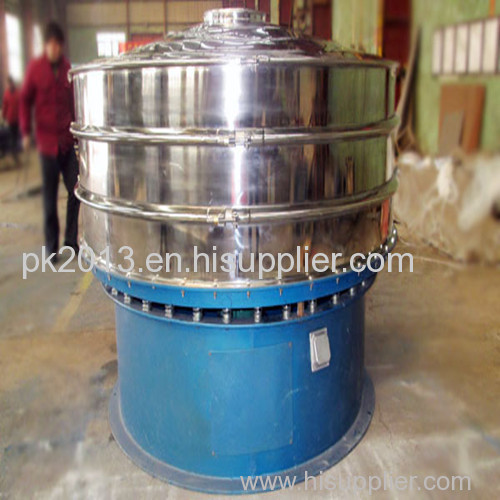

High Screening Efficient Food Industry Vibrating Screen is oneof the machinery equipment aims to improve the screening efficiency by applyingthe rotary and vibration operational mode to crush and screen the materials intodifferent granularity products according to the customer's requirement. Thisproduct also acts as a precise powder sieve to filter medium particles such assand, powder and mucilage.

-------Features

1. Small volume with easy moving
2. High efficiency wih compactstructure
3. Long screen life, easy&quick screen cloth exchange

4. Easy operation and maintenance
5. Equipped with anti-blindingdevice(bouncing balls), as well as dust-proof cover.

6. ISO9001:2008, BV, SGS ,CE and TUV certification

------- WorkingPrinciple

High Screening Efficient Food Industry VibratingScreen separates bulk solid materials from solids and slurries,utilizing multi-plane, inertial vibration that causes particles to pass throughapertures in the screen or to travel across the screen surface in controlledpathways.

-------Application

High Screening Efficient Food Industry Vibrating Screen ismostly applied in the following are:

1. Dry separation-Separation of different materials on the basis of theirparticle shape
2. Dry classification-Separation of solid particles intoprecise sized fractions
3. Solid/Liquid separation-Dewatering of solids andclarification of liquids :

-------TechnicalParameter

Model	Nominal Diameter (mm)	Screen diameter (mm)	Screen surface area (m3)	Feeding size (mm)	Specification	Layers No	Frequency (Rpm)	Power (KW)
XZ-400	400	340	0.09	<10	2-325	1-3	1500	0.18
XZ-600	600	530	0.22	<10			1500	0.25
XZ-800	800	720	0.4	<20			1500	0.55
XZ-1000	1000	900	0.63	<20			1500	0.75
XZ-1200	1200	1100	0.95	<20			1500	1.1
XZ-1500	1500	1400	1.5	<20			1500	1.5
XZ-1800	1800	1710	2.3	<30			1500	2.2
XZ-2000	2000	1910	2.86	<30			1500	3.7
